WC-4L-T Solar-powered wind vane

HT-F2-4L-T-1
HT-F2-T-4L.276

Design criterion :

ICAO：Annex 14, Volume I and II

CAAC：AC- 137- CA – 2015 – 05

FAA：AC 150 / 5345 – 27

Applied range :

Suitable for wind direction indication at heliports

Characteristic :

  • The wind vane is structurally simple, made of stainless steel, operates reliably and is easy to maintain.
  • Four LED spotlights illuminate the airbag, and the overall light distribution of the airbag is uniform.
  • Using LED lighting offers long lifespan, energy savings, and maintenance-free features, which bring considerable economic benefits to customers.
  • The unique electric slip ring conductive structure ensures that the wires remain stationary as the wind bag rotates.
  • The frame of the air bag is rotated using deep groove ball bearing seats, ensuring that the air bag frame rotates smoothly and effectively displaying the wind direction.
  • The size of the wind bag, the height of the wind vane, and the color of the wind bag can all be selected and customized.
  • The wind bag is made of lightweight and high-strength waterproof fabric, which is lightweight, elegant and durable.
  • Integrated circuit power supply drive, with reliable operation and convenient maintenance.
  • Supply method: AC 220V or DC (optional and customizable).
  •

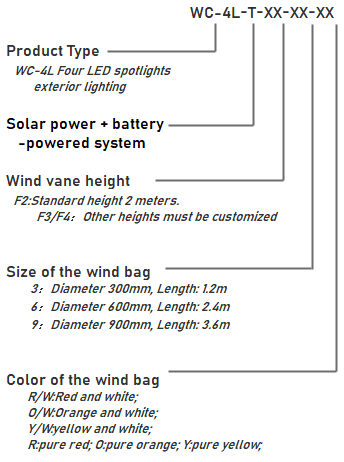

Ordering Method :

Ordering Method :

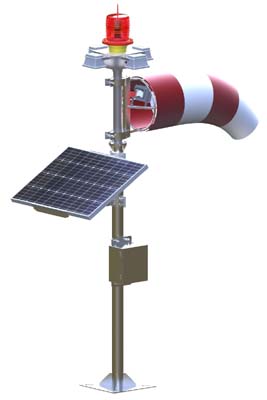

Product Picture

Design criterion
