D300-CT Aircraft Warning Lights

DESCRIPTION

Applicable to overhead power transmission lines, especially in sections crossing rivers, mountains and valleys. Install conspicuous barrier balls (sign balls / warning balls / bird repellers) on the lines to provide warning signs and indicate the presence of obstacles.

FUNCTIONS & FEATURES

  • Acrylonitrile-butadiene-styrene copolymer (ABS) and polycarbonate (PC) has good weather resistance.
  • Aluminum alloy cable clamp boasts exceptional corrosion resistance and is compatible with conductors ranging from 9 to 28 gauge.
  • Various size of cable clamps are available fo fit for customers’ cable conductor
  • Super corrosion resistant character, stainless steel bolts and nuts
  • Drain holes structure can prevent accumulated rain water inside the spheres
  • Stacking compatible design, save storage space and freight charge
  • Optional preformed armor rods provide better protection against vibration and abrasion
  • Sphere diameter is 300mm, This sizes can be customized.
  • The illumination lighting is type B low-intensity light source, powered by CT.

STANDARD

  •  ICAO Annex 14, 4th Edition,July 2004
  • FAA AC 70/7460-1K, obstruction Marking and Lighting

APPLICATION

  • Power transmission Line
  • Overhead line
  • Guyed wire for self-supported guyed tower

SPECIFICATION

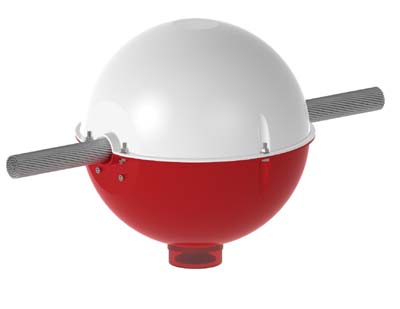

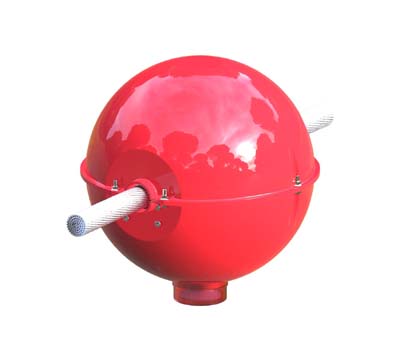

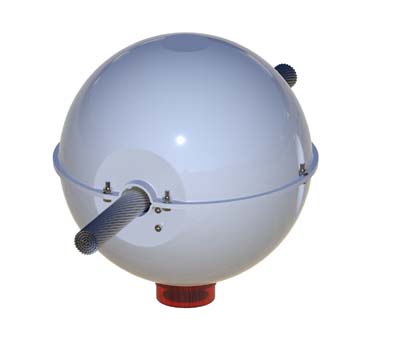

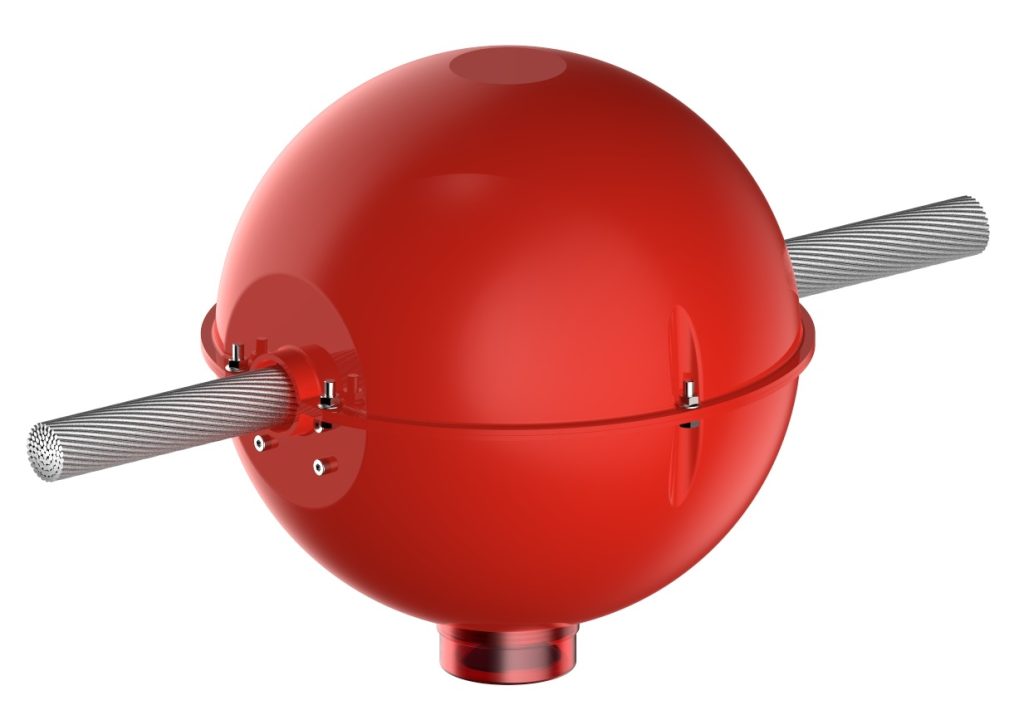

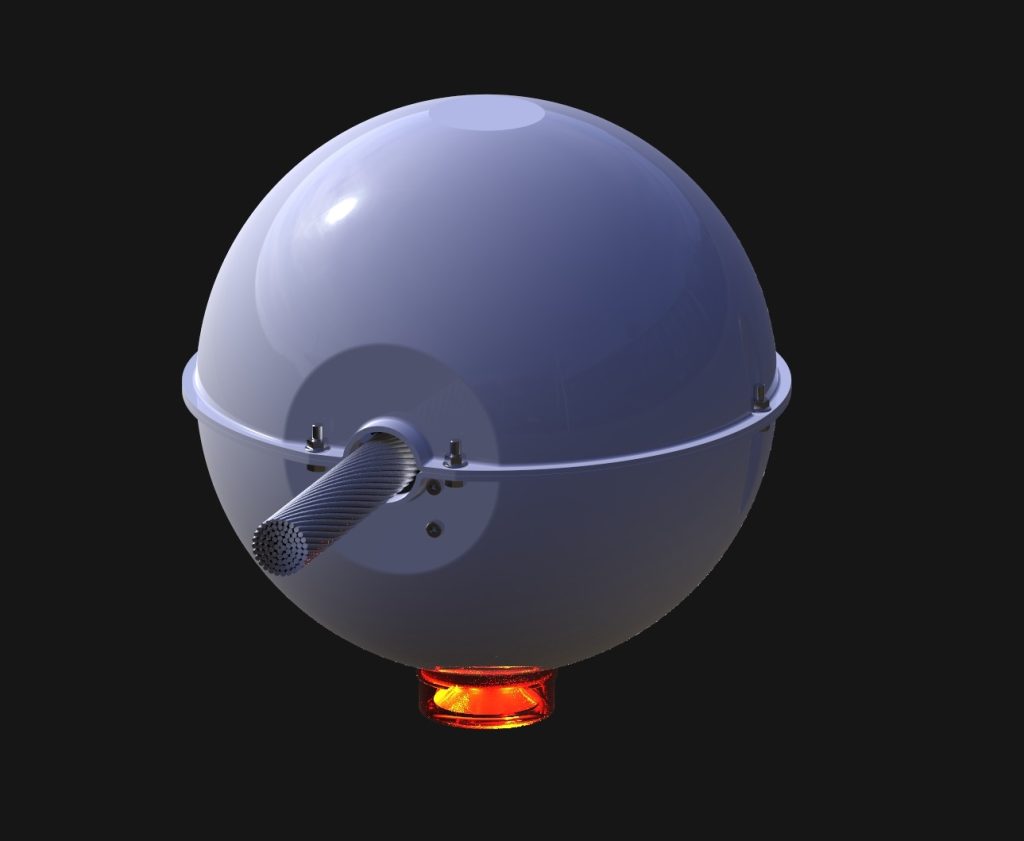

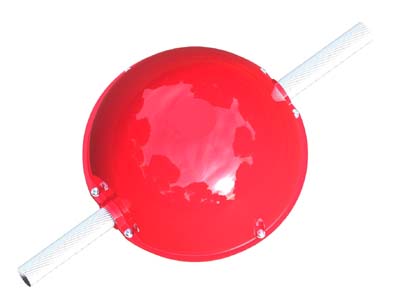

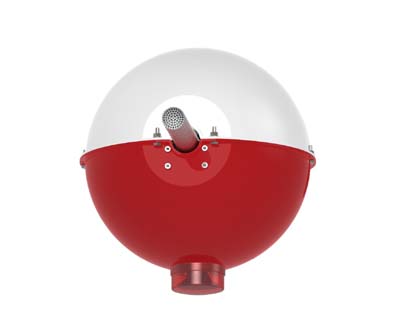

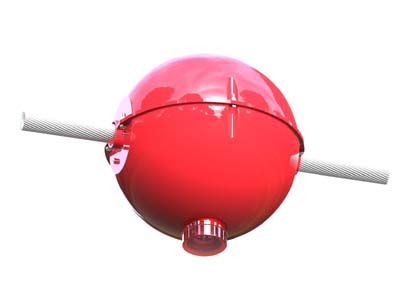

Product picture

Structure Size

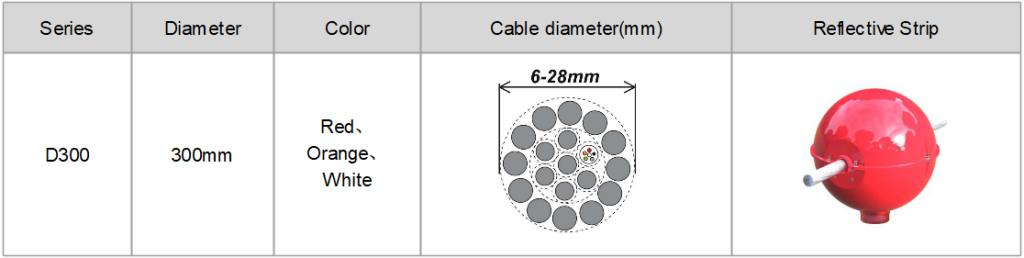

SPECIFICATION

INSTALLATION GUIDE

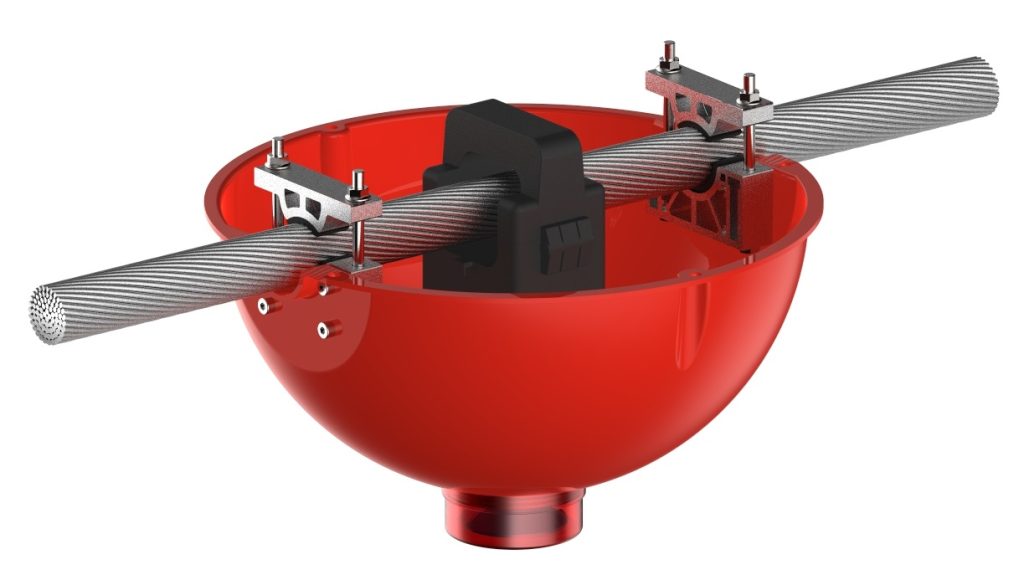

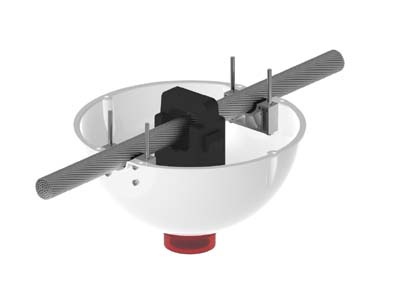

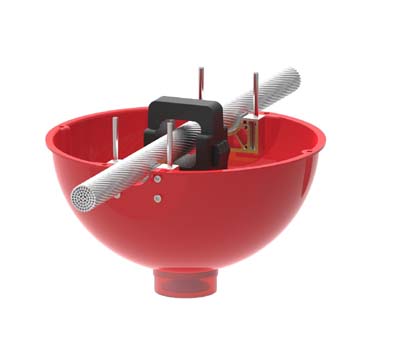

  • Place the lower halves of the aviation marking balls and lights onto the main conductor, ensuring proper positioning of the wire clamps. Then fit the aluminum sleeve onto the ball’s aluminum clamp, attach the nut, and tighten the screws.
  • Next, place the upper half of the aviation marking ball over the lower half, align it with the upper hole, then screw it in and tighten the nut. It is recommended to use electric tools for this operation.

POWER-ON TEST

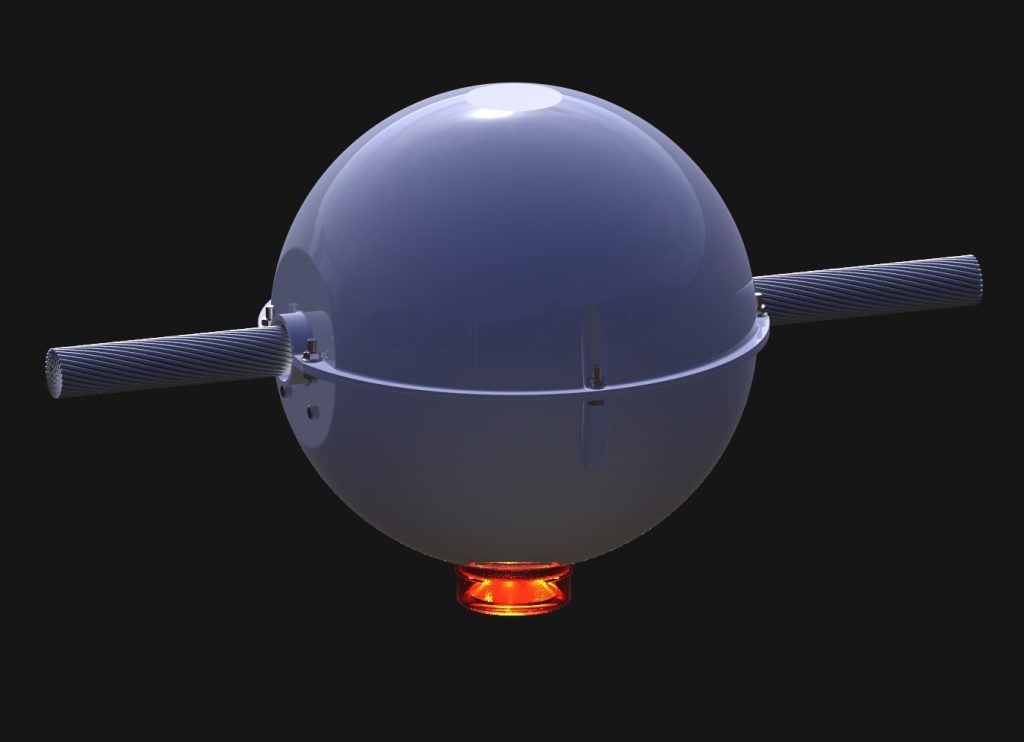

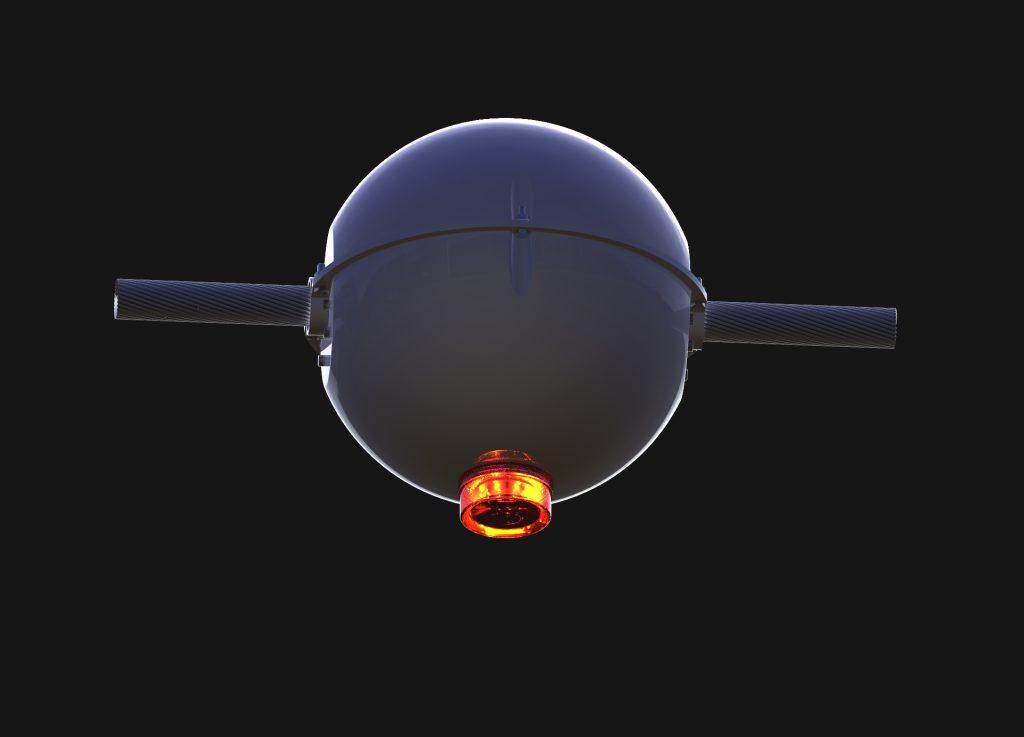

Night Time Effects

Common Fault Causes and Troubleshooting Methods
